Defi Sports Display F

efi Sports Display F (DSDF) is a multi-information display with a lap timer. DSDF displays data obtained from the Defi ADVANCE Control Unit system, OBDII connector, and GNSS (Global Navigation Satellite System including GPS)

Multi-information display with a lap timer.
Model code & release period:
DF15901/DF15902 – January, 2018 (with touch screen)
DF15903 – January, 2021 (without touch screen)
Main Features and functions
4.2inches touch panel TFT color LCD, a dim sensor, and a low reflection glass enhances the operatability and the readability.
The image is DF15901 (w/ touch panel). DF15903 has a different panel design and it has no touch panel.

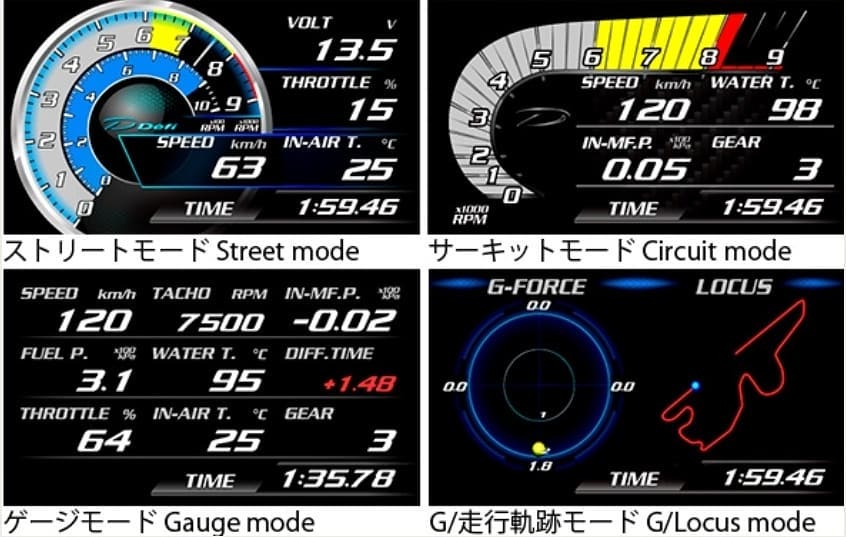

The display pattern can be selected from 4 patterns. (G/Locus mode is added by system updating)

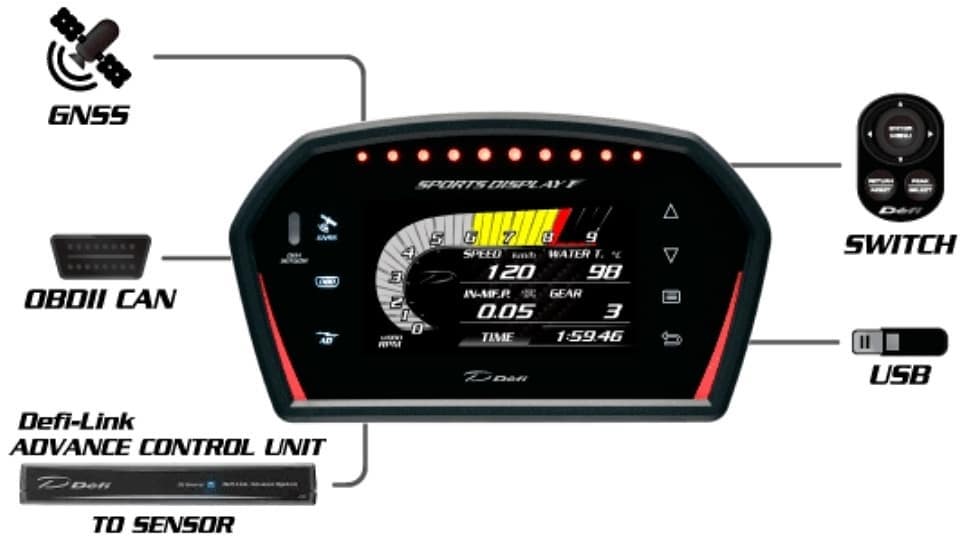

Data obtained from 3 different devices can be displayed in one screen.
  • Location information from GNSS
  • ISO CAN data from OBDII
  • Sensor information by linking with the ADVANCE system
Sequential indicators of 10 red LEDs
Driving data can be recorded, replayed, and analyzed by using an USB flash drive. The system can be updated too.
*A PC wired to the internet is necessary to analyze data and update the system.
A separate switch unit which is easy to push by fingers with racing gloves is included in the package.
